Specification sheet
D180 Product Specification
PDF · 3 pages
Download specification sheetProjekt Ref. PS-BLD-F000007
Fiber Glass Bollard Louvered 120V-277V E26 No Lamp
See other Dabmar Lighting bollards
Need help choosing a bollard? Read our bollard selection guide.
Configure your fixture
24 configurations available
WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Add to cart to check out. Sign in to save a project after adding items.
Projekt Supply Price
$679.50
Save 25%
Projekt Supply Price
$679.50
Save 25%
Projekt Supply Price
$696.00
Save 25%
Projekt Supply Price
$696.00
Save 25%
Projekt Supply Price
$696.00
Save 25%
Projekt Supply Price
$696.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$720.00
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$793.50
Save 25%
Projekt Supply Price
$841.50
Save 25%
Projekt Supply Price
$841.50
Save 25%
Projekt Supply Price
$841.50
Save 25%
Projekt Supply Price
$841.50
Save 25%
Projekt Supply Price
$786.00
Save 25%
Projekt Supply Price
$786.00
Save 25%
| Model | Wattage | Voltage | Color Temp | Finish | List Price | Projekt Supply Price | Availability | Qty |
|---|---|---|---|---|---|---|---|---|
| D180-BProjekt: PS-BLD-000571 | Non-LED | 120V-277V | N/A | Black | $906.00 | $679.50 Save 25% | In Stock | |
| D180-BZProjekt: PS-BLD-000588 | Non-LED | 120V-277V | N/A | Bronze | $906.00 | $679.50 Save 25% | In Stock | |
| D180-L6-30K-BProjekt: PS-BLD-000146 | 6W | 120V | 30K | Black | $928.00 | $696.00 Save 25% | In Stock | |
| D180-L6-30K-BZProjekt: PS-BLD-000147 | 6W | 120V | 30K | Bronze | $928.00 | $696.00 Save 25% | In Stock | |
| D180-L6-60K-BProjekt: PS-BLD-000148 | 6W | 120V | 60K | Black | $928.00 | $696.00 Save 25% | In Stock | |
| D180-L6-60K-BZProjekt: PS-BLD-000149 | 6W | 120V | 60K | Bronze | $928.00 | $696.00 Save 25% | In Stock | |
| D180-L6-RGBW-BProjekt: PS-BLD-000150 | 6W | 86V-265V | RGBW | Black | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L6-RGBW-BZProjekt: PS-BLD-000151 | 6W | 86V-265V | RGBW | Bronze | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L9-27K-BProjekt: PS-BLD-000152 | 9W | 120V | 27K | Black | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L9-27K-BZProjekt: PS-BLD-000153 | 9W | 120V | 27K | Bronze | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L9-40K-BProjekt: PS-BLD-000154 | 9W | 120V | 40K | Black | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L9-40K-BZProjekt: PS-BLD-000155 | 9W | 120V | 40K | Bronze | $960.00 | $720.00 Save 25% | In Stock | |
| D180-L12-30K-BProjekt: PS-BLD-000134 | 12W | 120V-277V | 30K | Black | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L12-30K-BZProjekt: PS-BLD-000135 | 12W | 120V-277V | 30K | Bronze | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L12-40K-BProjekt: PS-BLD-000136 | 12W | 120V-277V | 40K | Black | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L12-40K-BZProjekt: PS-BLD-000137 | 12W | 120V-277V | 40K | Bronze | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L12-50K-BProjekt: PS-BLD-000138 | 12W | 120V-277V | 50K | Black | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L12-50K-BZProjekt: PS-BLD-000139 | 12W | 120V-277V | 50K | Bronze | $1,058.00 | $793.50 Save 25% | In Stock | |
| D180-L20-30K-BProjekt: PS-BLD-000140 | 20W | 120V-277V | 30K | Black | $1,122.00 | $841.50 Save 25% | In Stock | |
| D180-L20-30K-BZProjekt: PS-BLD-000141 | 20W | 120V-277V | 30K | Bronze | $1,122.00 | $841.50 Save 25% | In Stock | |
| D180-L20-50K-BProjekt: PS-BLD-000142 | 20W | 120V-277V | 50K | Black | $1,122.00 | $841.50 Save 25% | In Stock | |
| D180-L20-50K-BZProjekt: PS-BLD-000143 | 20W | 120V-277V | 50K | Bronze | $1,122.00 | $841.50 Save 25% | In Stock | |
| D180-L25-AMB-BProjekt: PS-BLD-000144 | 25W | 100V-277V | N/A | Black | $1,048.00 | $786.00 Save 25% | In Stock | |
| D180-L25-AMB-BZProjekt: PS-BLD-000145 | 25W | 100V-277V | N/A | Bronze | $1,048.00 | $786.00 Save 25% | In Stock |
Selected finish
Family preview
Image gallery
D180 is a louvered fiberglass bollard for pathways, walks, driveways, and entries. The louvered head is the more shielded option in this bollard set. Choose D180 when you want that fiberglass path light rather than shuttered aluminum or a stainless cage.
Family specification below. Select an exact configuration above to pin model-specific values.
Family specification
Family facts apply across D180 unless a selected configuration above says otherwise.
41.25"
Overall Height
10.25"
Max Width
Fiberglass
Body Material
Wet Location
UL Approved
Surface Mount
Mounting Type
Fiberglass body with UL listing for wet location. Black and bronze finishes. No coastal, marine, or salt-air certification is stated beyond the listed material and wet-location listing.
Family range
This is a technical summary of the D180 range. Use Model Options above for pricing, availability, and ordering.

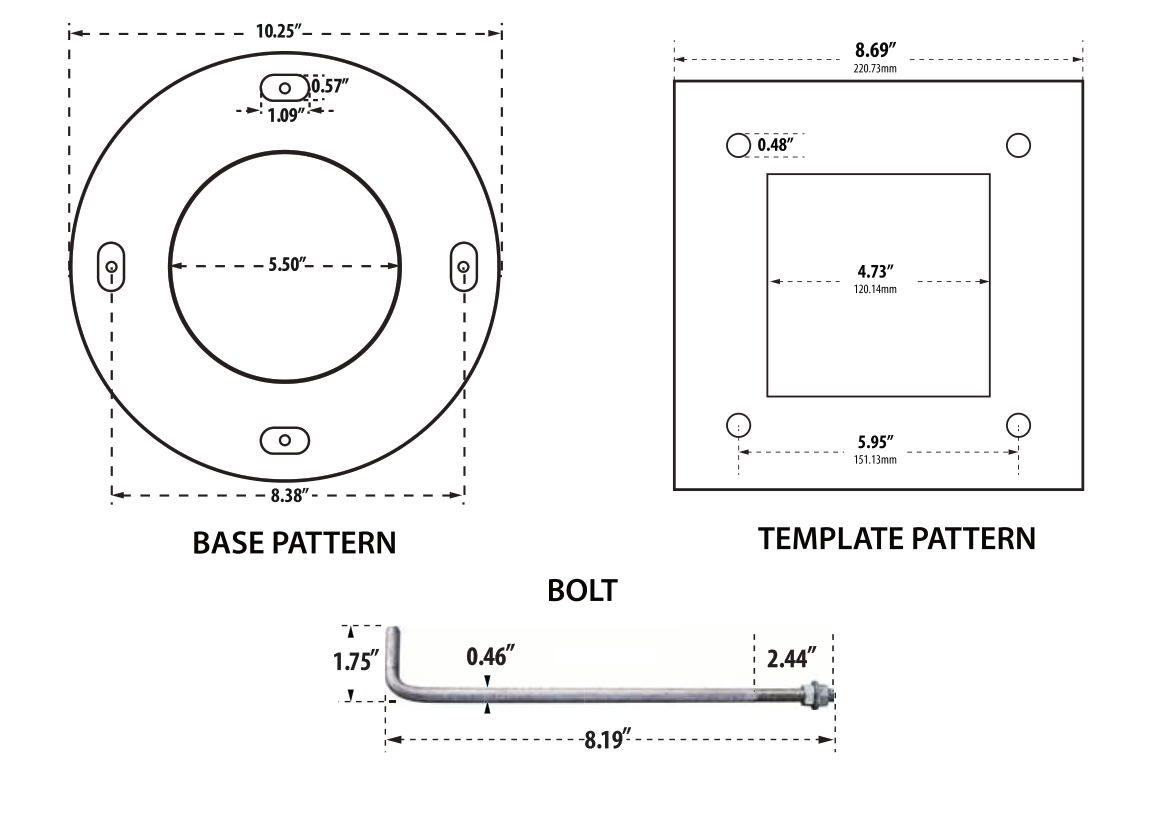

Installation
Dimensions shown in inches; metric equivalents shown where supplied by manufacturer.
Project resources
Specification sheet
PDF · 3 pages
Download specification sheetInstallation / mounting drawing
Shown on this page. No separate installation PDF is currently published in the catalog.
Photometrics / IES
Contact Projekt Supply for lamp-specific performance / IES data.
Contact Projekt SupplyWarranty
Voltage varies by configuration. Not every D180 configuration supports every listed voltage.
Observed voltages: 120V-277V, 100V-277V, 120V, 86V-265V
Lumens shown are nominal lamp output values provided for the listed D180 configurations.
| Configuration | Rated output | Voltage | CCT | Nominal lumens | Base |
|---|---|---|---|---|---|
| D180-L12-30K | 12W | 120V-277V | 3000K | 1200 lm | G24 |
| D180-L12-40K | 12W | 120V-277V | 4000K | 1225 lm | G24 |
| D180-L12-50K | 12W | 120V-277V | 5000K | 1250 lm | G24 |
| D180-L20-30K | 20W | 120V-277V | 3000K | 2400 lm | G24 |
| D180-L20-50K | 20W | 120V-277V | 5000K | 2400 lm | G24 |
| D180-L6-30K | 6W | 120V | 3000K | 480 lm | E26 |
| D180-L6-60K | 6W | 120V | 6000K | 480 lm | E26 |
| D180-L6-RGBW | 6W | 86V-265V | RGBW | 550 lm | E26 |
| D180-L9-27K | 9W | 120V | 2700K | 550 lm | GU24 |
| D180-L9-40K | 9W | 120V | 4000K | 800 lm | GU24 |
| D180-L25-AMB | 25W | 100V-277V | Amber | — | E26 |
| D180 | 60W (MAX) | 120V-277V | — | — | E26 |
Add -B for Black or -BZ for Bronze to complete the model number.
D180-L20-50K-B
20W / 50K / Black
The Model Options table above remains the ordering interface.

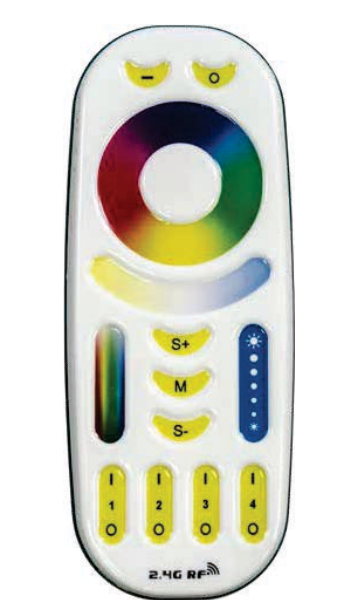

D180 RGBW · remote sold separately
4-ZONE
P-RMT-MR16-LED-4W-MC
~100 ft / 30 m

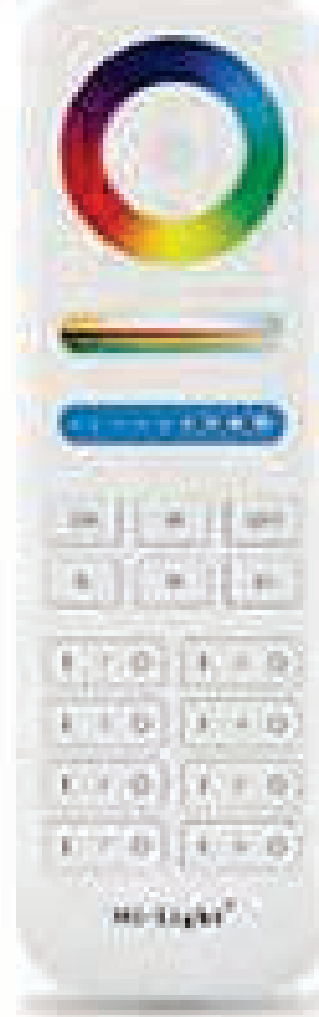

8-ZONE
P-RMT-LED-8ZONE-MC
~100 ft / 30 m
2.4 GHz RF
These notes summarize the specification drawing. They do not replace manufacturer installation instructions, a licensed electrician, or an engineer’s review of site conditions.
Dabmar Lighting Incorporated
Projekt Supply is the seller and authorized reseller. Dabmar Lighting Incorporated is the manufacturer.
Sold by Projekt Supply.
Choose D180 for a louvered fiberglass bollard. Nearby families in this set use shuttered cast aluminum (D3400) or a caged 316 stainless head (D700-SS316).
