Specification sheet
Projekt Ref. PS-WEL-F000031
Stainless 304 4-Way Drive-Over Well Light 12V 2-Pin
Configure your fixture
8 configurations available
WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Add to cart to check out. Sign in to save a project after adding items.
Projekt Supply Price
$193.50
Save 25%
Projekt Supply Price
$205.50
Save 25%
Projekt Supply Price
$205.50
Save 25%
Projekt Supply Price
$246.00
Save 25%
Projekt Supply Price
$210.00
Save 25%
Projekt Supply Price
$210.00
Save 25%
Projekt Supply Price
$214.50
Save 25%
Projekt Supply Price
$214.50
Save 25%
| Model | Wattage | Voltage | Color Temp | Finish | List Price | Projekt Supply Price | Availability | Qty |
|---|---|---|---|---|---|---|---|---|
| LV322-SS316Projekt: PS-WEL-000462 | Non-LED | 12V | N/A | Stainless Steel 316 | $258.00 | $193.50 Save 25% | In Stock | |
| LV322-L3-27K-SS316Projekt: PS-WEL-000455 | 3W | 12V | 27K | Stainless Steel 316 | $274.00 | $205.50 Save 25% | In Stock | |
| LV322-L3-65K-SS316Projekt: PS-WEL-000456 | 3W | 12V | 65K | Stainless Steel 316 | $274.00 | $205.50 Save 25% | In Stock | |
| LV322-L4-RGBW-SS316Projekt: PS-WEL-000457 | 4W | 12V | RGBW | Stainless Steel 316 | $328.00 | $246.00 Save 25% | In Stock | |
| LV322-L5-27K-SS316Projekt: PS-WEL-000458 | 5W | 12V | 27K | Stainless Steel 316 | $280.00 | $210.00 Save 25% | In Stock | |
| LV322-L5-65K-SS316Projekt: PS-WEL-000459 | 5W | 12V | 65K | Stainless Steel 316 | $280.00 | $210.00 Save 25% | In Stock | |
| LV322-L7-27K-SS316Projekt: PS-WEL-000460 | 7W | 12V | 27K | Stainless Steel 316 | $286.00 | $214.50 Save 25% | In Stock | |
| LV322-L7-65K-SS316Projekt: PS-WEL-000461 | 7W | 12V | 65K | Stainless Steel 316 | $286.00 | $214.50 Save 25% | In Stock |
Selected finish
Stainless Steel 316
Image gallery

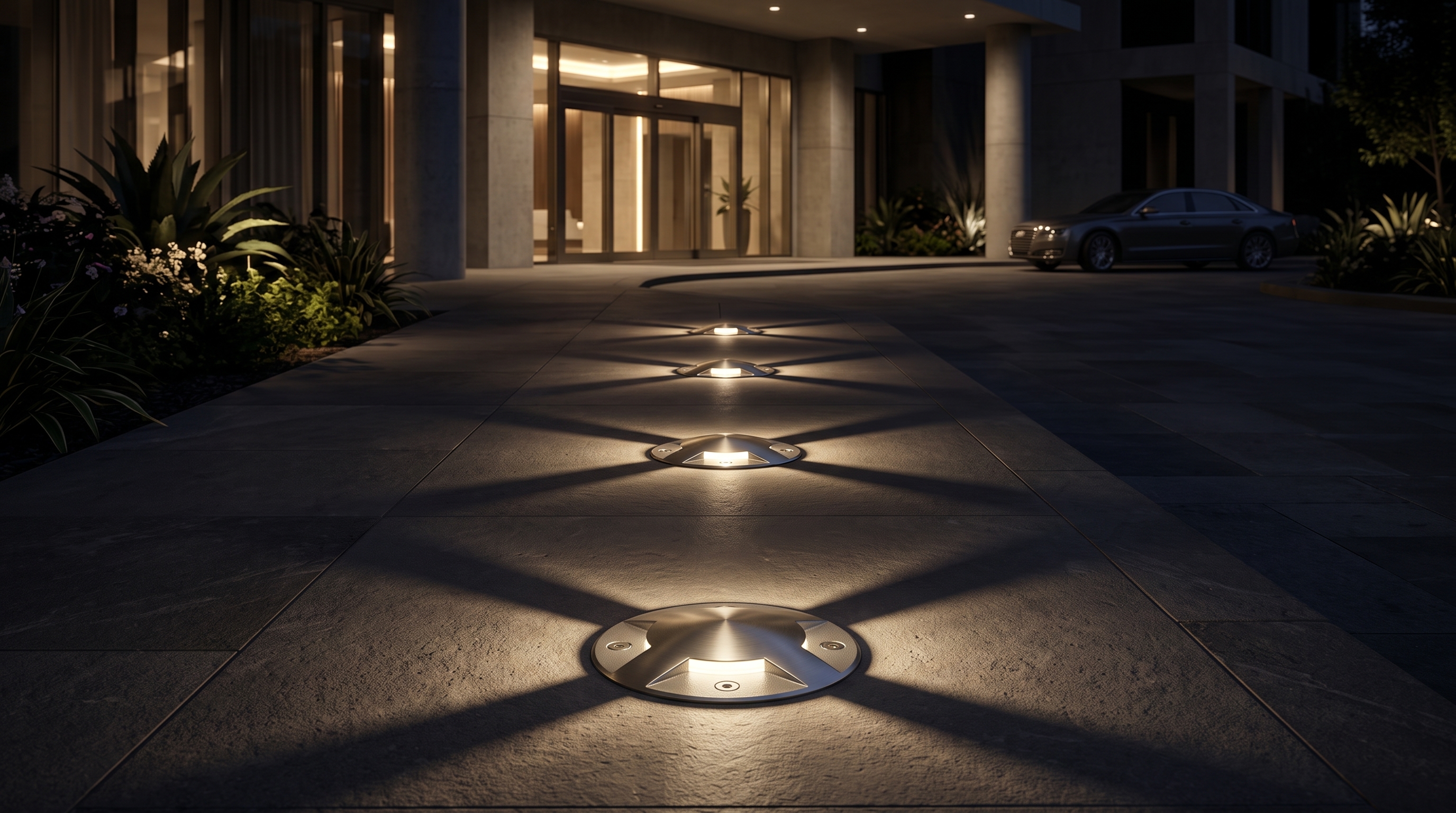

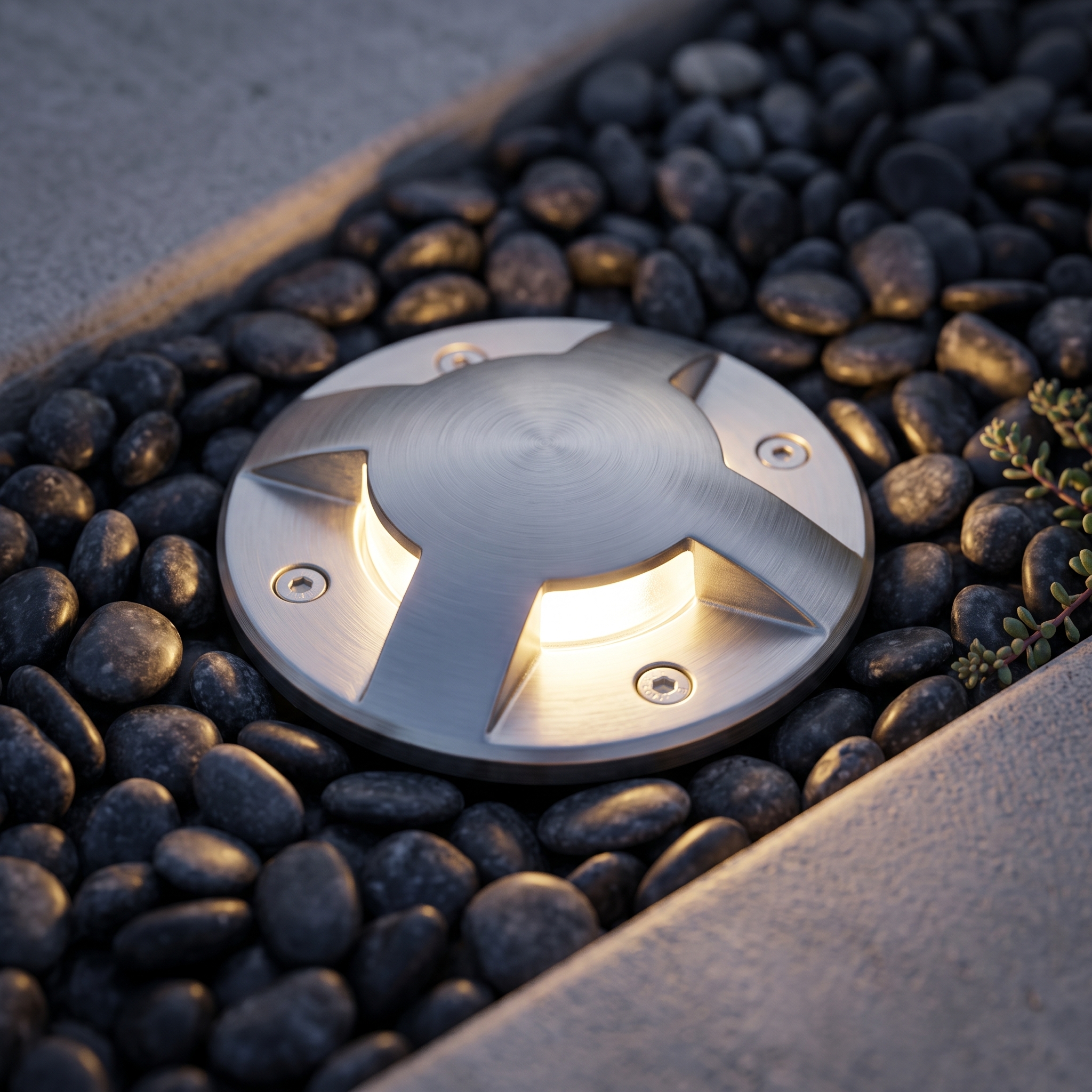

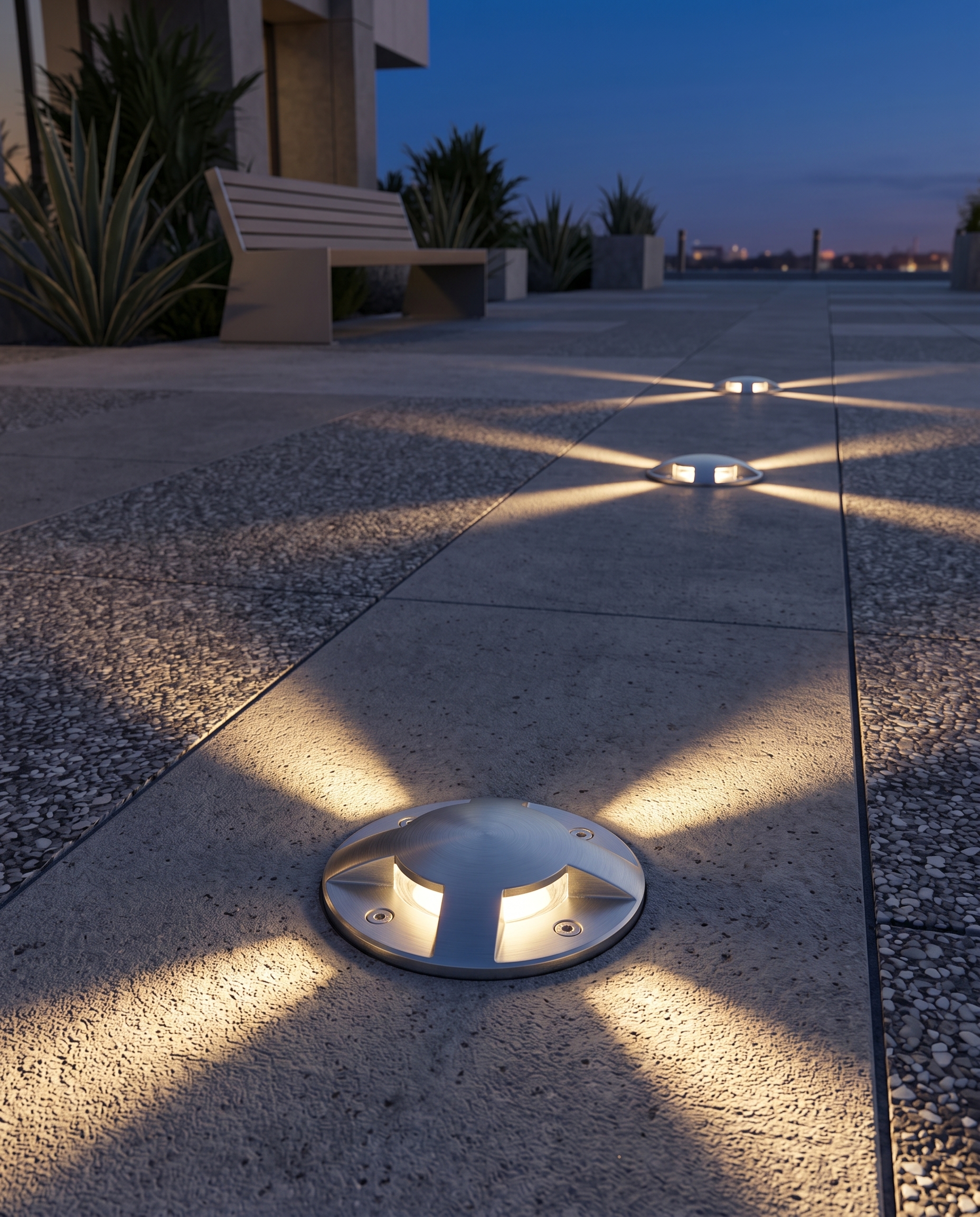

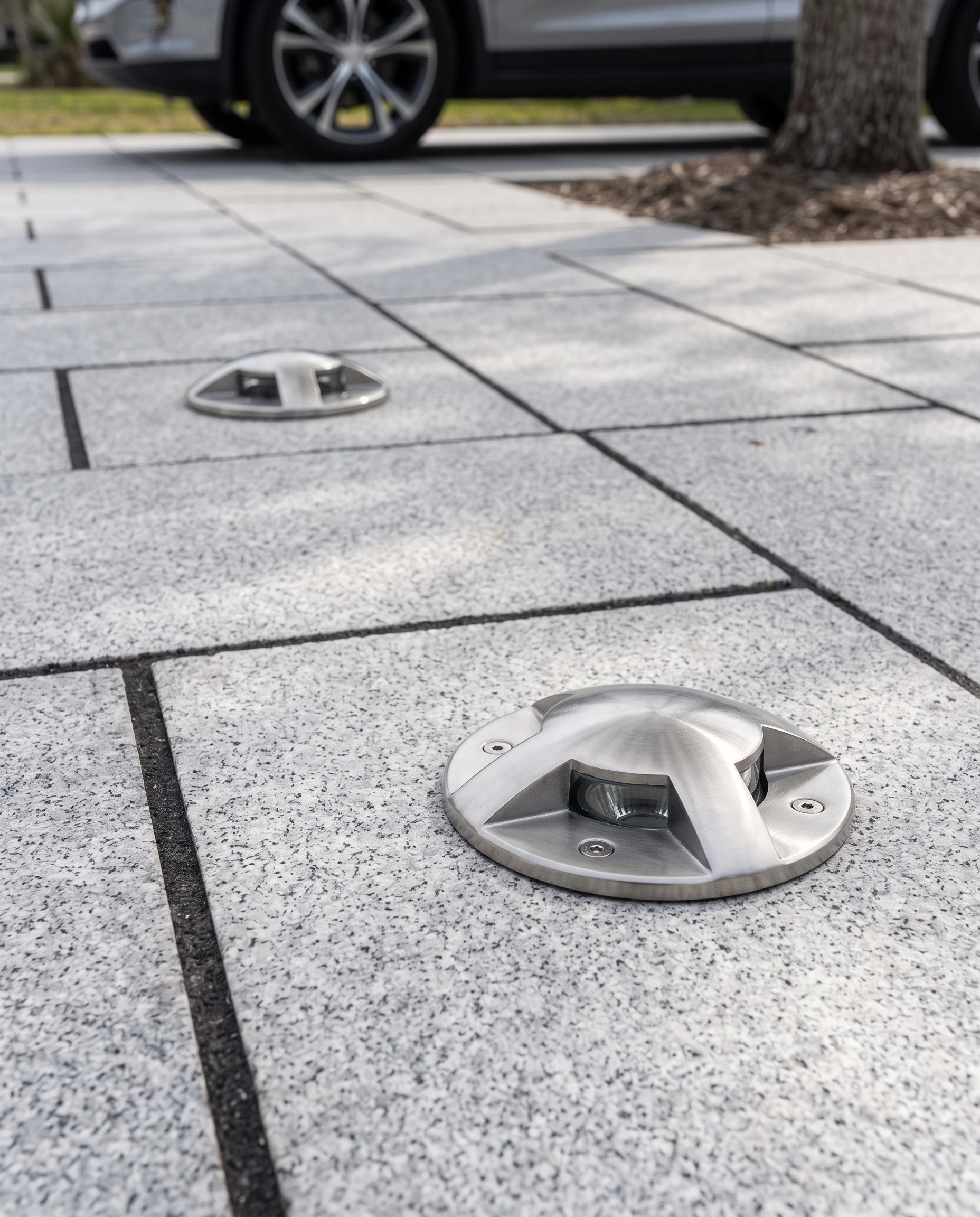

LV322 is a 304 stainless steel four-way drive-over in-ground well light for uplighting trees, structure, and planting from grade. Choose it when you need a drive-over well body rather than a planted landscape well. It is built for 12-volt landscape systems.
Family specification below. Select an exact configuration above to pin model-specific values.
Family specification
Family facts apply across LV322 unless a selected configuration above says otherwise.
—
Overall Height
—
Max Width
304 Stainless Steel
Body Material
UL Approved for Wet Location
UL Approved
In-ground
Mounting Type
304 stainless steel with UL Approved for Wet Location. This page does not add coastal, marine, or salt-air certifications beyond the listed material and listing.
Family range
This is a technical summary of the LV322 range. Use Model Options above for pricing, availability, and ordering.
Installation
No mounting drawing is published in the current catalog records.
These notes summarize published catalog facts. They do not replace manufacturer installation instructions, a licensed electrician, or an engineer’s review of site conditions.
Project resources
Specification sheet
Installation / mounting drawing
No mounting drawing is currently published in the catalog.
Photometrics / IES
Contact Projekt Supply for lamp-specific performance / IES data.
Contact Projekt SupplyWarranty
See the specification sheet for warranty terms when a sheet is published.
Dabmar Lighting
Voltage varies by configuration. Not every LV322 configuration supports every listed voltage.
Observed voltages: 12V
Lumens are not published in the current catalog records for this family.
| Configuration | Rated output | Voltage | CCT | Base |
|---|---|---|---|---|
| LV322-L3-27K-SS316 | 3W | 12V | 2700K | |
| LV322-L3-65K-SS316 | 3W | 12V | 6500K | |
| LV322-L4-RGBW-SS316 | 4W | 12V | RGBW | |
| LV322-L5-27K-SS316 | 5W | 12V | 2700K | |
| LV322-L5-65K-SS316 | 5W | 12V | 6500K | |
| LV322-L7-27K-SS316 | 7W | 12V | 2700K | |
| LV322-L7-65K-SS316 | 7W | 12V | 6500K | |
| LV322-SS316 | Non-LED | 12V | — |
Add -SS316 for Stainless Steel 316 to complete the model number.
LV322-L3-27K-SS316
3W / 27K / Stainless Steel 316
The Model Options table above remains the ordering interface.
Projekt Supply is the seller and authorized reseller. Dabmar Lighting Incorporated is the manufacturer.
